Tal's multi-indicator trading system

17 saat önce

# Tal's Trading Indicator - Complete Analysis

## Overview
This is a comprehensive TradingView Pine Script indicator that combines multiple technical analysis tools into one unified system. The indicator is primarily written in Hebrew and includes several advanced features.

## Main Components

### 1. Cup & Handle Pattern Detection
The core feature of this indicator is automated Cup & Handle pattern recognition:

**Key Parameters:**
- **Left/Right lookback periods**: Controls pivot point detection (3 left, 1 right default)
- **Search range**: Looks back 50 bars for pattern formation
- **Angle percentage**: 22% maximum angle between cup rim points
- **Cup height percentages**: 22% for both top and bottom cup measurements
- **Maximum breakouts**: 20% tolerance for false breakouts above/below pattern lines

**Pattern Validation:**
- Detects pivot highs and validates cup formation
- Uses mathematical cosine calculations for cup shape validation
- Checks for breakout violations within acceptable thresholds
- Identifies handle formation within 30 bars maximum
- Confirms breakout above cup rim

### 2. Technical Ratings System
Integrates TradingView's technical rating system across multiple timeframes:

**Supported Timeframes:**
- Current timeframe (customizable)
- 1 Hour, 4 Hour, Daily, Weekly, Monthly

**Rating Categories:**
- Moving Averages ratings
- Oscillator ratings
- Combined (All) ratings

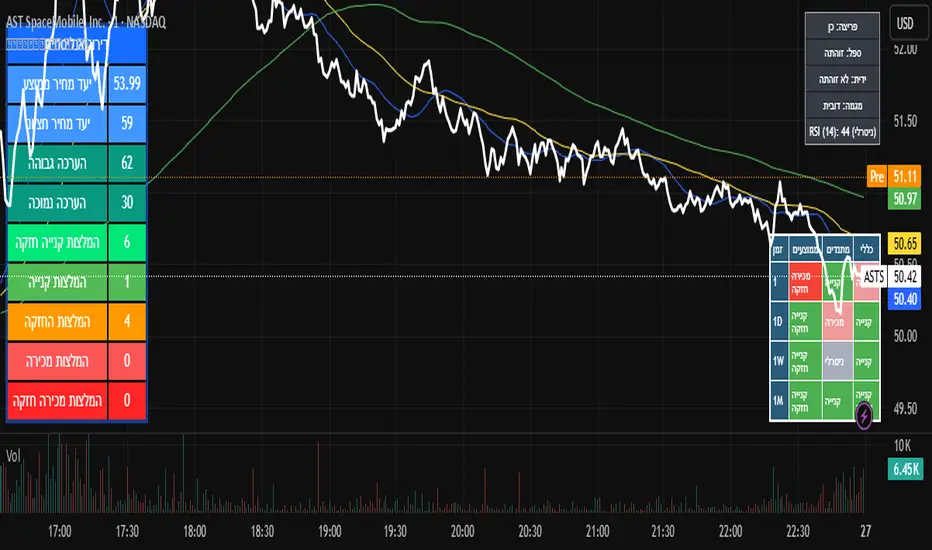

**Visual Display:**
- Color-coded table (Strong Buy, Buy, Neutral, Sell, Strong Sell)
- Multi-timeframe comparison
- Customizable position and colors

### 3. Analyst Ratings Integration
Displays professional analyst recommendations:

**Included Data:**
- Average price target
- Median price target
- High/low price estimates
- Buy/Hold/Sell recommendation counts
- Strong buy/sell recommendations

**Visual Elements:**
- Price target lines on chart
- Comprehensive analyst table
- Color-coded recommendation display

### 4. Moving Averages & Trend Analysis
**Displayed Averages:**
- 20-period SMA (blue)
- 50-period SMA (yellow)
- 150-period SMA (green)

**Trend Logic:**
- Bullish: Close > SMA20 > SMA50 > SMA150
- Used for signal filtering when enabled

### 5. Entry/Exit Signal System
**Entry Conditions:**
- Cup & Handle breakout confirmed
- Optional trend filter (bullish alignment required)
- No existing position

**Take Profit Methods:**
1. **Classic Pattern Target**: Entry price + cup height
2. **Analyst Average Target**: Uses analyst average price target

**Stop Loss Methods:**
1. **Handle Low**: Uses the lowest point of the handle
2. **Breakout Line**: Uses the cup rim level

## Visual Features

### Status Panel
Real-time display showing:
- Cup detection status
- Handle detection status
- Breakout confirmation
- Current trend direction

### Color Coding
- **Cup patterns**: Yellow fill with aqua borders
- **Retracement zones**: Red highlighting
- **Signals**: Green triangles for entries
- **Levels**: Green/red lines for TP/SL

## User Customization

### Cup & Handle Settings
- Pivot detection sensitivity
- Pattern angle tolerance
- Height requirements
- Breakout thresholds
- Visual display options

### Technical Ratings
- Timeframe selection
- Rating type focus (MAs, Oscillators, All)
- Color scheme customization
- Table positioning

### Signal System
- Enable/disable signals
- Trend filtering toggle
- TP/SL calculation methods
- Alert conditions

## Advanced Features

### Mathematical Validation
- Uses cosine functions for cup shape verification
- Percentage-based breakout tolerance
- Dynamic handle detection within time windows

### Memory Management
- Automatic cleanup of old pattern data
- Array size limitations to prevent memory issues
- Efficient storage of historical patterns

### Alert System
- Configurable entry signal alerts
- Real-time notifications for new opportunities

## Use Cases

1. **Pattern Traders**: Automated Cup & Handle detection with precise entry/exit levels
2. **Multi-timeframe Analysis**: Compare technical strength across different periods
3. **Fundamental Integration**: Combine technical patterns with analyst expectations
4. **Risk Management**: Built-in stop loss and take profit calculations

## Strengths
- Comprehensive pattern recognition with mathematical validation
- Multi-timeframe technical analysis integration
- Professional analyst data inclusion
- Flexible customization options
- Built-in risk management tools

## Considerations
- Complex indicator with many parameters to optimize
- Pattern detection may have false signals in choppy markets
- Requires understanding of Cup & Handle pattern characteristics
- Best used in conjunction with other confirmation signals

This indicator represents a sophisticated approach to combining classical chart patterns with modern technical analysis tools, making it suitable for both discretionary and systematic trading approaches.

13 saat önce

Sürüm Notları

## Overview
This is a comprehensive TradingView Pine Script indicator that combines multiple technical analysis tools into one unified system. The indicator is primarily written in Hebrew and includes several advanced features.

## Main Components

### 1. Cup & Handle Pattern Detection
The core feature of this indicator is automated Cup & Handle pattern recognition:

**Key Parameters:**
- **Left/Right lookback periods**: Controls pivot point detection (3 left, 1 right default)
- **Search range**: Looks back 50 bars for pattern formation
- **Angle percentage**: 22% maximum angle between cup rim points
- **Cup height percentages**: 22% for both top and bottom cup measurements
- **Maximum breakouts**: 20% tolerance for false breakouts above/below pattern lines

**Pattern Validation:**
- Detects pivot highs and validates cup formation
- Uses mathematical cosine calculations for cup shape validation
- Checks for breakout violations within acceptable thresholds
- Identifies handle formation within 30 bars maximum
- Confirms breakout above cup rim

### 2. Technical Ratings System
Integrates TradingView's technical rating system across multiple timeframes:

**Supported Timeframes:**
- Current timeframe (customizable)
- 1 Hour, 4 Hour, Daily, Weekly, Monthly

**Rating Categories:**
- Moving Averages ratings
- Oscillator ratings
- Combined (All) ratings

**Visual Display:**
- Color-coded table (Strong Buy, Buy, Neutral, Sell, Strong Sell)
- Multi-timeframe comparison
- Customizable position and colors

### 3. Analyst Ratings Integration
Displays professional analyst recommendations:

**Included Data:**
- Average price target
- Median price target
- High/low price estimates
- Buy/Hold/Sell recommendation counts
- Strong buy/sell recommendations

**Visual Elements:**
- Price target lines on chart
- Comprehensive analyst table
- Color-coded recommendation display

### 4. Moving Averages & Trend Analysis
**Displayed Averages:**
- 20-period SMA (blue)
- 50-period SMA (yellow)
- 150-period SMA (green)

**Trend Logic:**
- Bullish: Close > SMA20 > SMA50 > SMA150
- Used for signal filtering when enabled

### 5. Entry/Exit Signal System
**Entry Conditions:**
- Cup & Handle breakout confirmed
- Optional trend filter (bullish alignment required)
- No existing position

**Take Profit Methods:**
1. **Classic Pattern Target**: Entry price + cup height
2. **Analyst Average Target**: Uses analyst average price target

**Stop Loss Methods:**
1. **Handle Low**: Uses the lowest point of the handle
2. **Breakout Line**: Uses the cup rim level

## Visual Features

### Status Panel
Real-time display showing:
- Cup detection status
- Handle detection status
- Breakout confirmation
- Current trend direction

### Color Coding
- **Cup patterns**: Yellow fill with aqua borders
- **Retracement zones**: Red highlighting
- **Signals**: Green triangles for entries
- **Levels**: Green/red lines for TP/SL

## User Customization

### Cup & Handle Settings
- Pivot detection sensitivity
- Pattern angle tolerance
- Height requirements
- Breakout thresholds
- Visual display options

### Technical Ratings
- Timeframe selection
- Rating type focus (MAs, Oscillators, All)
- Color scheme customization
- Table positioning

### Signal System
- Enable/disable signals
- Trend filtering toggle
- TP/SL calculation methods
- Alert conditions

## Advanced Features

### Mathematical Validation
- Uses cosine functions for cup shape verification
- Percentage-based breakout tolerance
- Dynamic handle detection within time windows

### Memory Management
- Automatic cleanup of old pattern data
- Array size limitations to prevent memory issues
- Efficient storage of historical patterns

### Alert System
- Configurable entry signal alerts
- Real-time notifications for new opportunities

## Use Cases

1. **Pattern Traders**: Automated Cup & Handle detection with precise entry/exit levels
2. **Multi-timeframe Analysis**: Compare technical strength across different periods
3. **Fundamental Integration**: Combine technical patterns with analyst expectations
4. **Risk Management**: Built-in stop loss and take profit calculations
5. Shows RSI info in the status table.

## Strengths
- Comprehensive pattern recognition with mathematical validation
- Multi-timeframe technical analysis integration
- Professional analyst data inclusion
- Flexible customization options
- Built-in risk management tools

## Considerations
- Complex indicator with many parameters to optimize
- Pattern detection may have false signals in choppy markets
- Requires understanding of Cup & Handle pattern characteristics
- Best used in conjunction with other confirmation signals

This indicator represents a sophisticated approach to combining classical chart patterns with modern technical analysis tools, making it suitable for both discretionary and systematic trading approaches.
