High-Low Difference Channels - SMA/EMA — JayRogers tarafından gösterge

high low difference parallelchannel movingaverage ema sr pricechannel

I wrote this up as a potential replacement for my BB based strategies, and so far it's looking pretty nice.

Description / Usage:

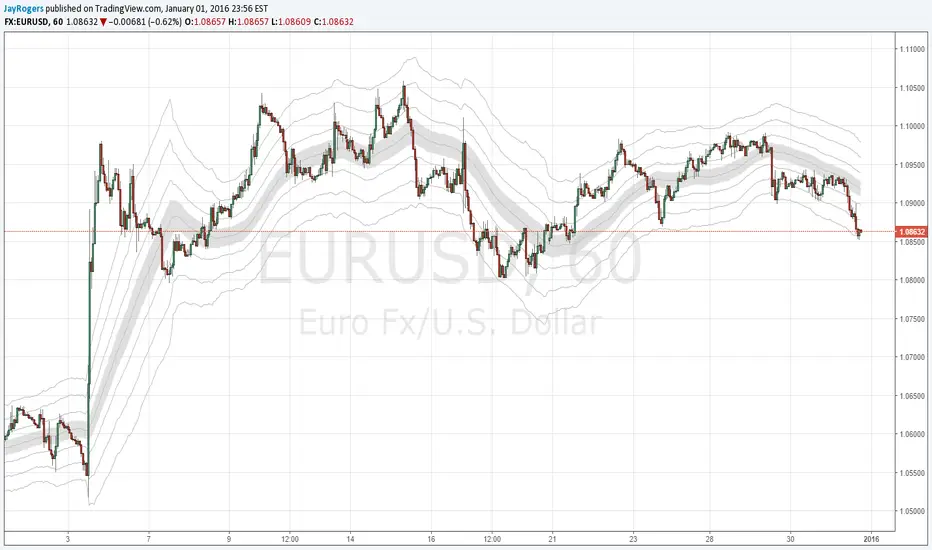

Adjust length and multiplier much the same way you would expect with Bollinger Bands.
Multiplier of 1 gives you a base channel consisting of one high, and one low sourced SMA (or EMA)
The outer channels are increments of the base channels width, away from the median hl2 sourced SMA (..or EMA)

Yorum:

New revision here, with more MA options than you can shake a stick at:

Yorum:

Final revision done.

Added (optional) select-able fixed resolutions, so you can have 1 hour bands on your 1 minute chart if you do so feel inclined.

Otherwise just some minor code cleaning and proper commenting:

Açık kaynak kodlu komut dosyası

Gerçek TradingView ruhuyla, bu betiğin yazarı, yatırımcının anlayabilmesi ve doğrulayabilmesi için onu açık kaynak olarak yayınladı. Yazarın eline sağlık! Bunu ücretsiz olarak kullanabilirsiniz, ancak bu kodun bir yayında yeniden kullanımı Kullanım Koşulları ile yönetilir. Bir grafikte kullanmak için favorilere ekleyebilirsiniz.

Feragatname

Bilgiler ve yayınlar, TradingView tarafından sağlanan veya onaylanan finansal, yatırım, işlem veya diğer türden tavsiye veya tavsiyeler anlamına gelmez ve teşkil etmez. Kullanım Şartları'nda daha fazlasını okuyun.

Bu komut dosyasını bir grafikte kullanmak ister misiniz?

//@version=2

study(title="High-Low Difference Channels - SMA/EMA", shorttitle="HLDC", overlay=true)

// Revision:    1
// Author:      JayRogers
// Reasoning:   I wrote this up as a potential replacement for my BB based strategies, and so far it's
//              looking pretty nifty.
//
// Description / Usage:
//
//  - Adjust length and multiplier much the same way you would expect with Bollinger Bands.
//  - multiplier of 1 gives you a base channel consisting of one high, and one low sourced SMA (or EMA)
//  - The outer channels are increments of the base channels width, away from the median hl2 sourced SMA (..or EMA)

hlc_length      = input(50, title="Channel Length", minval=1)
hlc_diffMult    = input(1.5, title="Difference Multiplier", minval=0.1, maxval=50)
hlc_useEMA      = input(false, title="Use EMA instead of SMA?")

hl2_line    = hlc_useEMA ? ema(hl2, hlc_length) : sma(hl2, hlc_length)
high_line   = hlc_useEMA ? ema(high, hlc_length) : sma(high, hlc_length)
low_line    = hlc_useEMA ? ema(low, hlc_length) : sma(low, hlc_length)

diffMult(num) =>
    hldm = (high_line - low_line) * hlc_diffMult
    r = hldm * num

midline     = plot(hl2_line, title="Midline", color=silver, transp=0)

highLine    = plot(hl2_line + (diffMult(1) / 2), title="Center Channel Upper", color=silver, transp=100)
lowLine     = plot(hl2_line - (diffMult(1) / 2), title="Center Channel Lower", color=silver, transp=100)

diffUp1     = plot(hl2_line + diffMult(1), title="High Diff 1", color=silver, transp=0)
diffUp2     = plot(hl2_line + diffMult(2), title="High Diff 2", color=silver, transp=0)
diffUp3     = plot(hl2_line + diffMult(3), title="High Diff 3", color=silver, transp=0)

diffDown1   = plot(hl2_line - diffMult(1), title="Low Diff 1", color=silver, transp=0)
diffDown2   = plot(hl2_line - diffMult(2), title="Low Diff 2", color=silver, transp=0)
diffDown3   = plot(hl2_line - diffMult(3), title="Low Diff 3", color=silver, transp=0)

fill(highLine, lowLine, title="Center High-Low Fill", color=silver, transp=50)
