Crypto Options Greeks & Volatility Analyzer [BackQuant]

Crypto Options Greeks & Volatility Analyzer [BackQuant]

Overview
The Crypto Options Greeks & Volatility Analyzer is a comprehensive analytical tool that calculates Black-Scholes option Greeks up to the third order for Bitcoin and Ethereum options. It integrates implied volatility data from VOLMEX indices and provides multiple visualization layers for options risk analysis.

Quick Introduction to Options Trading
Options are financial derivatives that give the holder the right, but not the obligation, to buy or sell an underlying asset at a predetermined price (strike price) within a specific time period (expiration date). Understanding options requires grasping two fundamental concepts:
Call Options: Give the right to buy the underlying asset at the strike price. Calls increase in value when the underlying price rises above the strike price.
Put Options: Give the right to sell the underlying asset at the strike price. Puts increase in value when the underlying price falls below the strike price.

The Language of Options: Greeks
Options traders use "Greeks" - mathematical measures that describe how an option's price changes in response to various factors:

• Delta: How much the option price moves for each $1 change in the underlying

• Gamma: How fast delta changes as the underlying moves

• Theta: Daily time decay - how much value erodes each day

• Vega: Sensitivity to implied volatility changes

• Rho: Sensitivity to interest rate changes


These Greeks are essential for understanding risk. Just as a pilot needs instruments to fly safely, options traders need Greeks to navigate market conditions and manage positions effectively.

Why Volatility Matters
Implied volatility (IV) represents the market's expectation of future price movement. High IV means:

• Options are more expensive (higher premiums)

• Market expects larger price swings

• Better for option sellers


Low IV means:

• Options are cheaper

• Market expects smaller moves

• Better for option buyers


This indicator helps you visualize and quantify these critical concepts in real-time.


Back to the Indicator

Key Features & Components
1. Complete Greeks Calculations
The indicator computes all standard Greeks using the Black-Scholes-Merton model adapted for cryptocurrency markets:


First Order Greeks:

• Delta (Δ): Measures the rate of change of option price with respect to underlying price movement. Ranges from 0 to 1 for calls and -1 to 0 for puts.

• Vega (ν): Sensitivity to implied volatility changes, expressed as price change per 1% change in IV.

• Theta (Θ): Time decay measured in dollars per day, showing how much value erodes with each passing day.

• Rho (ρ): Interest rate sensitivity, measuring price change per 1% change in risk-free rate.


Second Order Greeks:

• Gamma (Γ): Rate of change of delta with respect to underlying price, indicating how quickly delta will change.

• Vanna: Cross-derivative measuring delta's sensitivity to volatility changes and vega's sensitivity to price changes.

• Charm: Delta decay over time, showing how delta changes as expiration approaches.

• Vomma (Volga): Vega's sensitivity to volatility changes, important for volatility trading strategies.


Third Order Greeks:

• Speed: Rate of change of gamma with respect to underlying price (∂Γ/∂S).

• Zomma: Gamma's sensitivity to volatility changes (∂Γ/∂σ).

• Color: Gamma decay over time (∂Γ/∂T).

• Ultima: Third-order volatility sensitivity (∂²ν/∂σ²).


2. Implied Volatility Analysis
The indicator includes a sophisticated IV ranking system that analyzes current implied volatility relative to its recent history:
IV Rank: Percentile ranking of current IV within its 30-day range (0-100%)
IV Percentile: Percentage of days in the lookback period where IV was lower than current
IV Regime Classification: Very Low, Low, High, or Very High
Color-Coded Headers: Visual indication of volatility regime in the Greeks table
Trading regime suggestions based on IV rank:

• IV Rank > 75%: "Favor selling options" (high premium environment)

• IV Rank 50-75%: "Neutral / Sell spreads"

• IV Rank 25-50%: "Neutral / Buy spreads"

• IV Rank < 25%: "Favor buying options" (low premium environment)

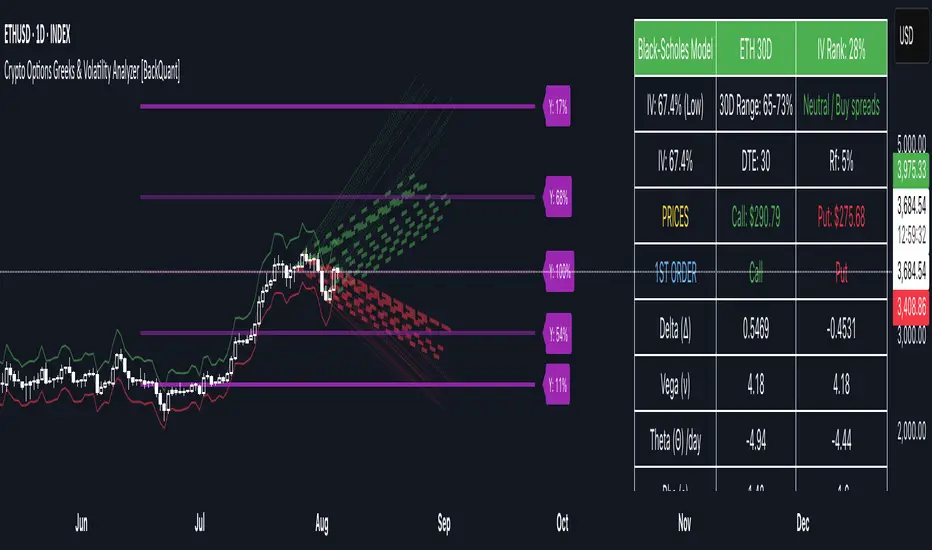

3. Gamma Zones Visualization

Gamma zones display horizontal price levels where gamma exposure is highest:
Purple horizontal lines indicate gamma concentration areas
Opacity scaling: Darker shading represents higher gamma values
Percentage labels: Shows gamma intensity relative to ATM gamma
Customizable zones: 3-10 price levels can be analyzed

These zones are critical for understanding:

• Pin risk around expiration

• Potential for explosive price movements

• Optimal strike selection for gamma trading

• Market maker hedging flows


4. Probability Cones (Expected Move)

The probability cones project expected price ranges based on current implied volatility:
1 Standard Deviation (68% probability): Shown with dashed green/red lines
2 Standard Deviations (95% probability): Shown with dotted green/red lines
Time-scaled projection: Cones widen as expiration approaches
Lognormal distribution: Accounts for positive skew in asset prices

Applications:
Strike selection for credit spreads
Identifying high-probability profit zones
Setting realistic price targets
Risk management for undefined risk strategies

5. Breakeven Analysis

The indicator plots key price levels for options positions:
White line: Strike price
Green line: Call breakeven (Strike + Premium)
Red line: Put breakeven (Strike - Premium)
These levels update dynamically as option premiums change with market conditions.

6. Payoff Structure Visualization

Optional P&L labels display profit/loss at expiration for various price levels:
Shows P&L at -2 sigma, -1 sigma, ATM, +1 sigma, and +2 sigma price levels
Separate calculations for calls and puts
Helps visualize option payoff diagrams directly on the chart
Updates based on current option premiums

Configuration Options
Calculation Parameters
Asset Selection: BTC or ETH (limited by VOLMEX IV data availability)
Expiry Options: 1D, 7D, 14D, 30D, 60D, 90D, 180D
Strike Mode: ATM (uses current spot) or Custom (manual strike input)
Risk-Free Rate: Adjustable annual rate for discounting calculations

Display Settings
Greeks Display: Toggle first, second, and third-order Greeks independently
Visual Elements: Enable/disable probability cones, gamma zones, P&L labels
Table Customization: Position (6 options) and text size (4 sizes)
Price Levels: Show/hide strike and breakeven lines
Technical Implementation

Data Sources
Spot Prices: BTCUSD and ETHUSD for underlying prices
Implied Volatility: BVIV (Bitcoin) and EVIV (Ethereum) indices
Real-Time Updates: All calculations update with each price tick

Mathematical Framework
The indicator implements the full Black-Scholes-Merton model:
Standard normal distribution approximations using Abramowitz and Stegun method
Proper annualization factors (365-day year)
Continuous compounding for interest rate calculations
Lognormal price distribution assumptions

Alert Conditions
Four categories of automated alerts:

1. Price-Based: Underlying crossing strike price

2. Gamma-Based: 50% surge detection for explosive moves

3. Moneyness: Deep ITM alerts when |delta| > 0.9

4. Time/Volatility: Near expiration and vega spike warnings


Practical Applications

For Options Traders

• Monitor all Greeks in real-time for active positions

• Identify optimal entry/exit points using IV rank

• Visualize risk through probability cones and gamma zones

• Track time decay and plan rolls


For Volatility Traders

• Compare IV across different expiries

• Identify mean reversion opportunities

• Monitor vega exposure across strikes

• Track higher-order volatility sensitivities


Conclusion

The Crypto Options Greeks & Volatility Analyzer transforms complex mathematical models into actionable visual insights. By combining institutional-grade Greeks calculations with intuitive overlays like probability cones and gamma zones, it bridges the gap between theoretical options knowledge and practical trading application.
Whether you're:

• A directional trader using options for leverage

• A volatility trader capturing IV mean reversion

• A hedger managing portfolio risk

• Or simply learning about options mechanics


This tool provides the quantitative foundation needed for informed decision-making in cryptocurrency options markets.

Remember that options trading involves substantial risk and complexity. The Greeks and visualizations provided by this indicator are tools for analysis - they should be combined with proper risk management, position sizing, and a thorough understanding of options strategies.

As crypto options markets continue to mature and grow, having professional-grade analytics becomes increasingly important. This indicator ensures you're equipped with the same analytical capabilities used by institutional traders, adapted specifically for the unique characteristics of 24/7 cryptocurrency markets.
