(RSI + CCI) × (MACD/ATR)^2

⚙️ (RSI + CCI) × (MACD / ATR)² Composite — Normalized, Compressed, Dynamic Colors

This advanced composite oscillator merges three powerful momentum indicators — RSI, CCI, and MACD — into one normalized and volatility-adjusted signal that reacts smoothly across all markets.
By dividing MACD by ATR (Average True Range), the indicator self-scales for different symbols, and an optional tanh-like compression prevents extreme spikes while keeping the movement fluid and responsive.

🧩 Core Formula

(RSI + CCI) × (MACD / ATR)²
(optionally passed through a tanh compression for stability)

RSI and CCI are normalized (RSI ÷ 50, CCI ÷ 100) → roughly −2 to +2 range.

MACD is volatility-adjusted by ATR → scale-independent between assets.

The result is centered around 0 for clear bullish/bearish momentum comparison.

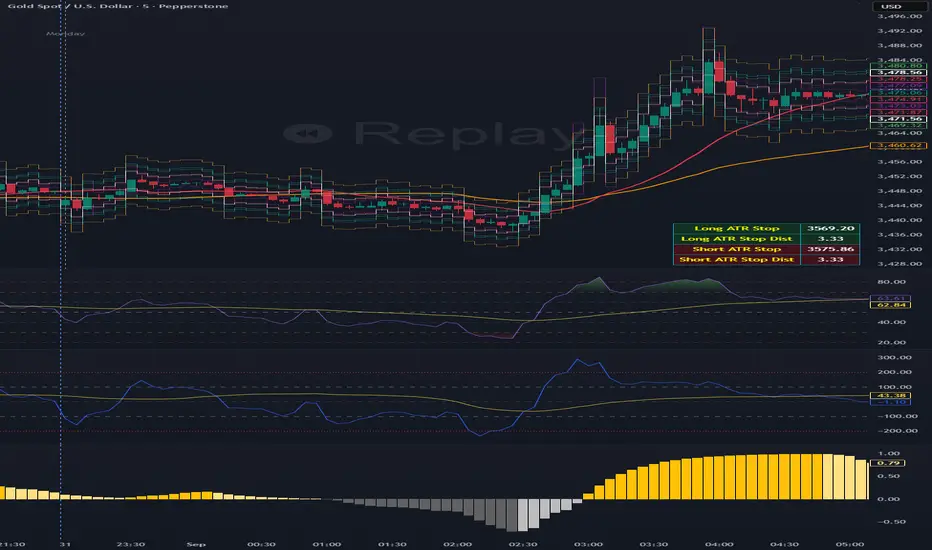

🎨 Visual Features

🟢🔴 Dynamic 4-Color Histogram

Positive + Rising = Strong Teal

Positive + Falling = Light Teal

Negative + Falling = Strong Red

Negative + Rising = Light Red

🟡⚫ 4-Color Smoothing Line

Positive & Rising = Bright Yellow

Positive & Falling = Soft Yellow

Negative & Rising = Grey

Negative & Falling = Dark Grey

Zero-centered layout for intuitive bullish/bearish visualization.

⚙️ Adjustable Parameters

Individual RSI, CCI, and MACD lengths and sources.

ATR length for volatility normalization.

Optional tanh-style compression with adjustable gain (to keep values in ±1 range).

Fully customizable colors and line widths for both bars and smoothing line.

🔔 Alerts

Triggered automatically when the composite crosses above or below zero, signaling potential trend reversals or momentum shifts.

💡 How to Use

Composite > 0 → Bullish momentum ↑

Composite < 0 → Bearish momentum ↓

A brightening line or bar = momentum accelerating.

A fading color = momentum weakening or reversal forming.

Combine with higher-timeframe trend filters (EMA, VWAP, Supertrend) for confirmation.
