How to work with Pine Editor

How to work with Pine Editor

Pine Editor is the main tool for working with the Pine Script® language. With it, you can create, edit, and test your trading strategies, indicators, and libraries.

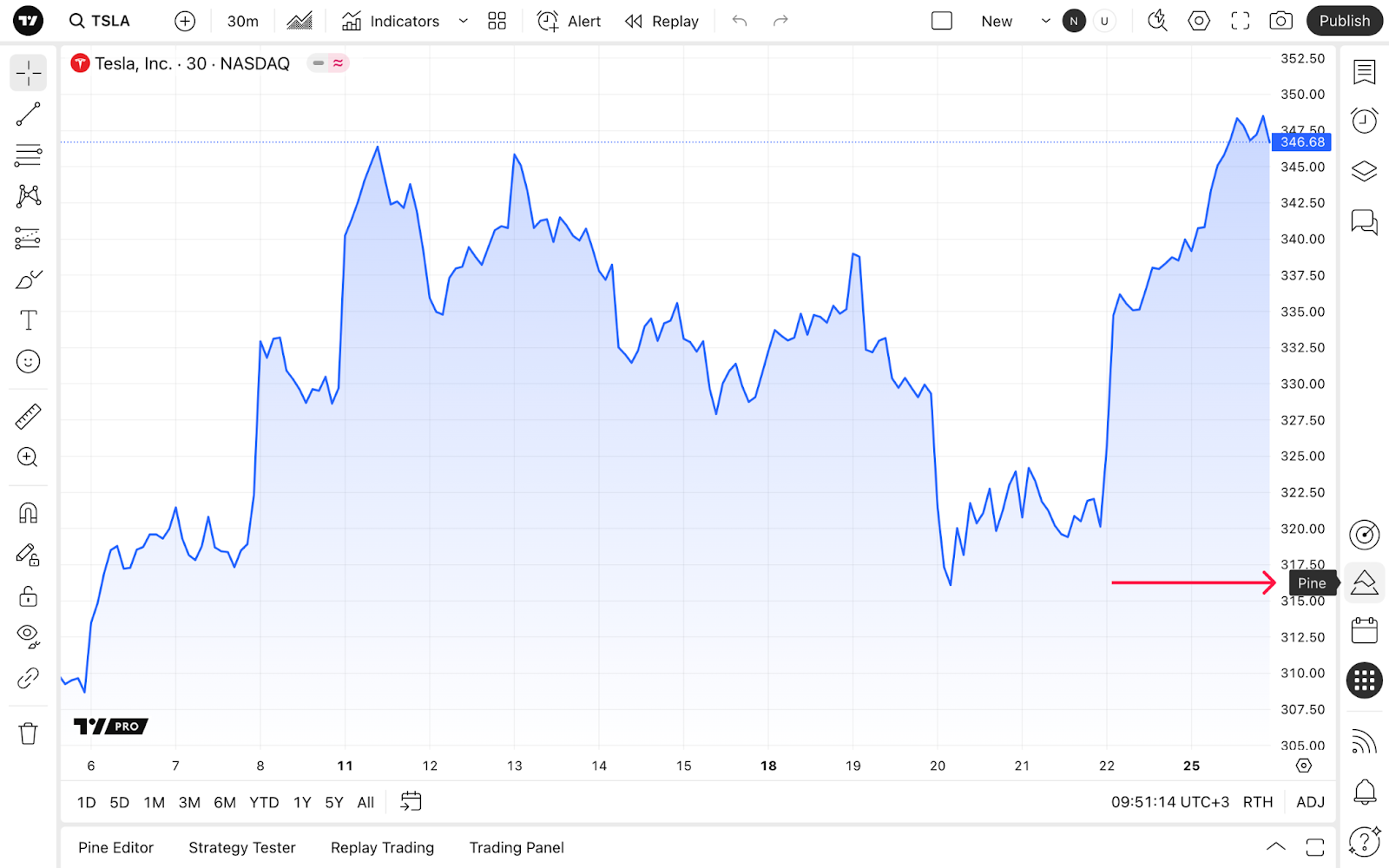

To open Pine Editor, click the "Pine" icon on the right toolbar.

The editor automatically saves its state. If you close it, all open scripts and unsaved changes will be restored the next time you launch the editor.

Display modes

By default, Pine Editor opens as a floating panel. You can move it around the screen and resize it so it doesn’t block important chart elements.

Other modes:

  • Docked mode: Click the icon to dock the editor to the right side of the chart. This mode provides a vertical layout, allowing you to edit code while simultaneously viewing the chart, the strategy report, or other tabs such as Strategy Tester and Replay Trading

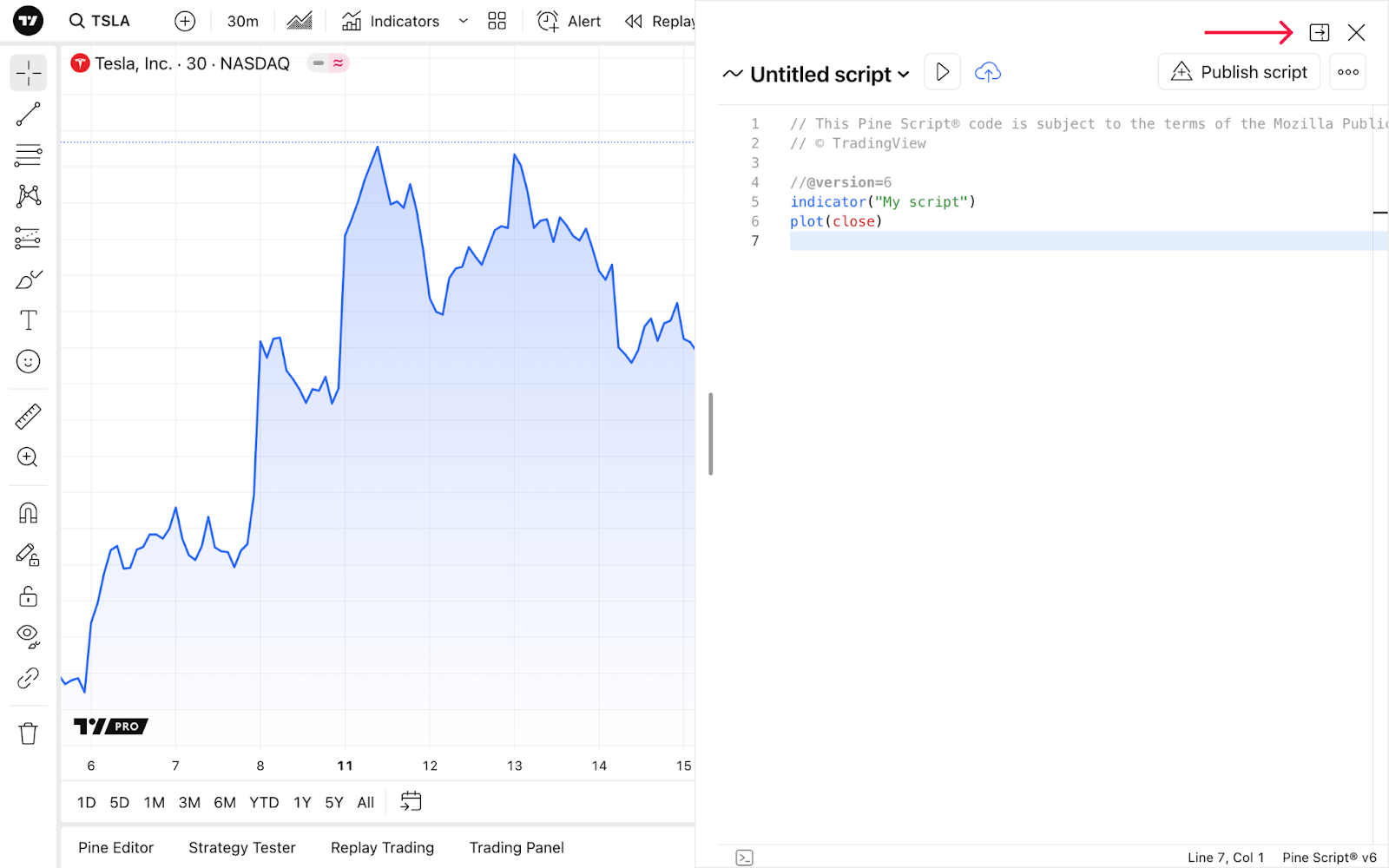

  • Separate browser window: Use detach mode  to open the Pine Editor in a new window or tab and place it alongside the chart as needed.

Workspace settings

Keep your code lines concise. Use the vertical gray guide on the right and watch for horizontal scrolling to ensure readability across all screen sizes.

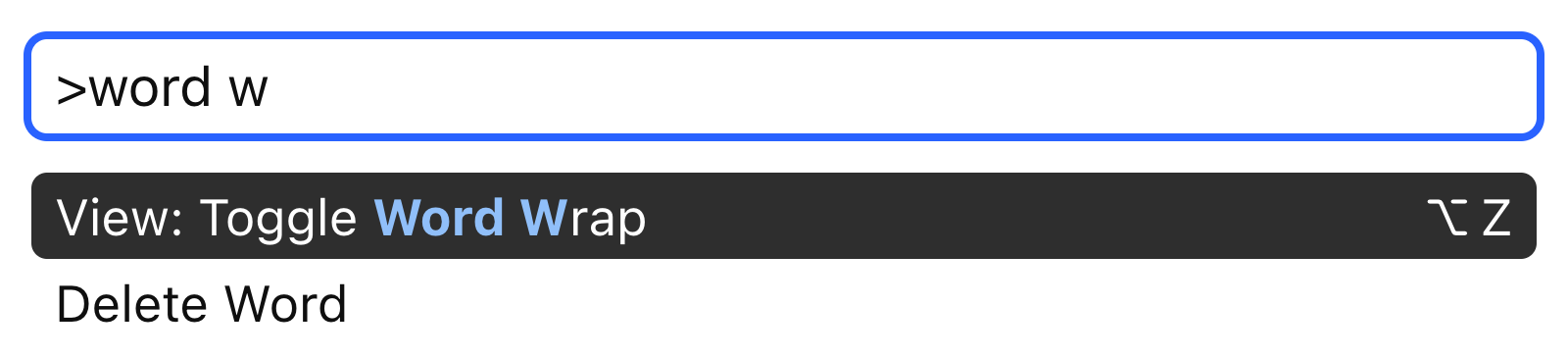

Word wrap

To enable:

  1. Press F1 to open the Command Palette.
  2. Type "Word wrap" and select the command.

Or use the shortcut Alt + Z (Windows) / Option + Z (macOS).

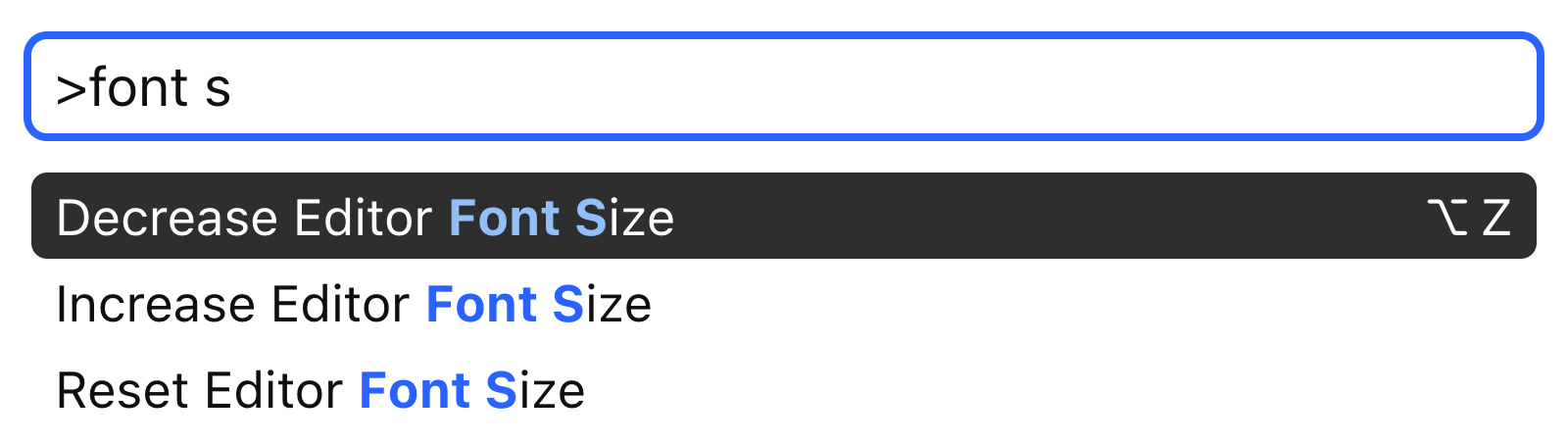

Font size

To change the font size:

  1. Press F1 to open the Command Palette.
  2. Type “Font Size” and select the necessary option: Increase Editor Font Size, Decrease Editor Font Size, or Reset Editor Font Size

Tools and resources

Script actions

  • Add to the chart: Apply the current script to your chart for testing or visualization
  • Publish script: Share your script with the community

Working with files

Click the script name to:

  • Save script
  • Make a copy
  • Rename
  • Access Version history
  • Create new iIndicator, strategy, or library
  • Open script
  • Choose recently used scripts

Additional tools

In the three-dot menu you can find:

Editor settings

  • Suggestions as you type: Enable autocomplete as you type
  • Minimap:  Code overview for quick navigation
  • Line length guide: A vertical line to control line length
  • Inlay hints for imports: Show import aliases and loading status hints
  • Diff decorations: Display unsafe changes

You can Reset to default to restore default settings or press OK to apply changes.

Open editor

  • New window: Open the editor in a separate browser window
  • New tab: Open the editor in a new browser tab

Developer tools

  • Profiler mode: Profiling mode for performance analysis
  • Pine logs: View execution logs

Other resources

  • Release notes: Access a list of updates and changes
  • Help: Access documentation and external resources
