TMB Invest - Smart Money Concept Strategy

English:
**Quick Overview**
The "TMB_SMC_Strategy_v1.1.3" combines a classic trend filter using two EMAs with contrarian RSI entries and simple SMC elements (Fair Value Gaps & Order Blocks). Stop-loss and take-profit orders are volatility-adaptive and controlled via the ATR. An integrated dashboard displays the setup status, stop-loss/take-profit levels, entry reference, and trend, RSI, and ATR values.

---

## Operating Principle

1. **Trend Filter:** A fast EMA (default 50) is compared to a slow EMA (default 200). Trading occurs only in the direction of the trend: long in uptrends, short in downtrends.

2. **Timing via RSI:** Contrarian entries within the trend. Go long when the RSI is below a buy level (default 40); Short when the RSI is above a sell level (standard 60).

3. **Structure Check (SMC Proxy):** An "FVG Touch" serves as additional confirmation that an inefficient price zone has been tested. Order blocks are visualized for guidance but are not a direct entry trigger.

4. **Risk Management via ATR:** Stop-loss and take-profit levels are set as multipliers of the current ATR (e.g., SL = 1×ATR, TP = 2×ATR). This allows target and risk distances to adjust to market volatility.

5. **Simple Position Logic:** Only one position is held at a time (no pyramiding). After entry, stop and limit orders (bracket exit) are automatically placed.


---

## Input Values

* **EMA Fast / EMA Slow:** Lengths of the moving averages for the trend filter.

* **RSI Length / Levels:** Length of the RSI as well as buy and sell thresholds (contra signals within the trend direction).

* **Take Profit (RR) / Stop Loss (RR):** ATR multipliers for TP and SL.

* **Show FVGs & Order Blocks:** Toggles the visual SMC elements (zones/boxes) on or off.

--

## Signals & Execution

* **Long Setup:** Uptrend (fast EMA above slow EMA) **and** RSI below the buy level **and** a current FVG signal in a bullish direction.

* **Short Setup:** Downtrend (fast EMA below slow EMA) **and** RSI above the sell level **and** a current FVG touch in a bearish direction.

* **Entry & Exit:** If the setup is met, the market is entered; stop-loss/take-profit orders are placed immediately according to ATR multiples.

--

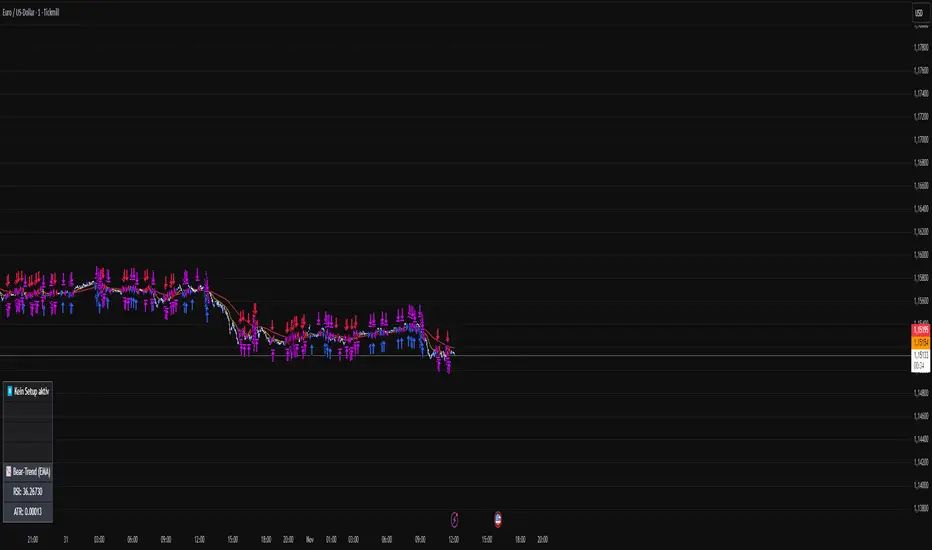

## Visualization

* **EMAs:** The fast and slow EMAs are plotted to illustrate the trend.

* **FVGs:** Fair Value Gaps are drawn as semi-transparent boxes in the trend color and projected slightly into the future.

* **Order Blocks:** Potential order block zones from the previous candle are visually highlighted (for informational purposes only).


---

## Integrated Dashboard

A compact table dashboard (bottom left) displays:

* Current **Setup Status** (Long/Short active, Long/Short ready, No Setup),
* **Stop-Loss**, **Take-Profit**, and **Entry Reference**,
* **Trend Status** (Bull/Bear/Sideways),
* **RSI Value**, and **ATR Value**.

Active long/short positions are highlighted in color (green/red).

--

## Practical Guide

1. **Place on Chart** and select the desired timeframe.

2. **Calibrate Parameters** (EMA lengths, RSI levels, ATR multipliers) to match the market and timeframe.

3. **Backtest** across different market phases; prioritize robustness over maximum curve fit.

4. **Fine-Tuning:**

* Shorter EMAs are often useful intraday (e.g., 20/100 or 34/144).

* Adjust RSI levels to market characteristics (45/55 for aggressive trading, 30/70 for conservative trading).

* Increase or decrease ATR multipliers depending on volatility/trading style.

--

## Notes, Limitations & Extensions

* **FVG Definition:** The FVG detection used here is intentionally simplified. Those who prefer a more rigorous approach can switch to a 3-candle definition and fill levels.

* **Order Blocks:** These primarily serve as a guide. Integration into entry/exit logic (e.g., retests) is possible as an extension.

* **Backtest Realism:** Fills may differ from the displayed closing price. For greater accuracy, intrabar backtests or an entry indicator based on the average position price are conceivable.

* **Alerts:** Currently, no alert conditions are defined; these can be added for long/short setups and status messages.

* **Position Management:** By default, no scaling is performed. Partial sales, trailing stops, or multiple entries can be added.

---

## Purpose & Benefits

The strategy offers a clear, modular framework: trend filter (direction), RSI contra timing (entry), SMC proxy via FVG Touch (structure), and ATR-based exits (risk adaptation). This makes it robust, easy to understand, and highly extensible—both for discretionary traders who appreciate visual SMC elements and for systematic testers who prefer a clean, parameterizable foundation.
